Jib Lifting Equipment Electric Swivel Crane Q235 Material 0~8m/min

  • 1
  • 2

Brand Name : SGY

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : USD 5000

Payment Terms : L/C, T/T, Western Union

Delivery Time : 30 work days

Material : Q235

Power source : User Requirments

Lifting speed : 0~8m/min

Lifting mechanism : Electric hoist

Color : Customer Requirements

Contact Now

Jib Lifting Equipment Electric Swivel Crane

Product Description

Column Slewing Mounted Jib Crane are versatile, efficent and cost effective solutions for moving materials within an individual workstation, for transferring materials from work area to work area or for serving as auxiliary lifting devices under overhead tadano cranes.

Column Slewing Mounted Jib Crane can be handled easily by one man and have been thoroughly proven in factories, steel mills, muclear and other power stations, ship yards, stockyards, on dredgers, aboard ships, in the wood and stone working industry, in marinas and on railway stations.

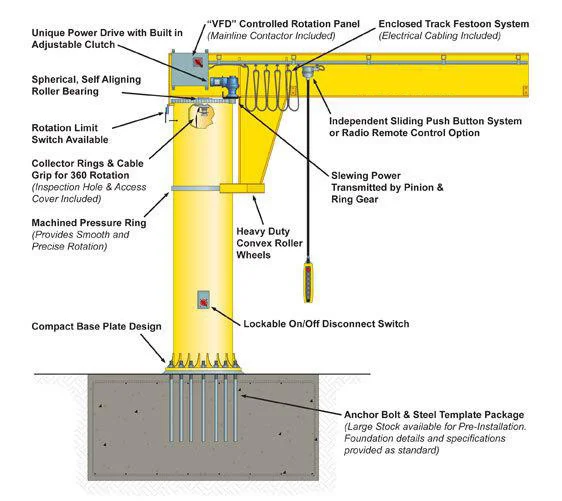

Technical Parameters

  • Capacities from 250 kgs to 5 Ton
  • Standard span upto 20 feet
  • 360 degree rotation
  • Designed for permanent concrete foundation
  • Base plates assembly is secured by means of anchor bolts to a prescribed reinforced concrete foundation, with the number of anchor bolts varying with the capacity of the tadano crane.
  • The pipe or colomn is designed to give maximum strength and minimum
    deflection to resist bending, buckling and crushing
  • The top bearing assembly utilizes a tapered roller bearing provided with
    grease fitting for proper lubrication.
